Energy Efficiency: How Paddle Dryers Reduce Energy Costs?
7/7/20257 min read
In today’s world, where energy costs are rising and environmental concerns are growing, industries are under increasing pressure to adopt more sustainable and efficient operations. One of the key areas where energy savings can be achieved is in the drying process. Among the various drying technologies available, paddle dryers have emerged as a highly energy-efficient solution, particularly for industries such as chemical processing, food production, sludge drying and pharmaceuticals.
Paddle dryers are known for their energy-efficient design, which minimizes heat loss and maximizes the use of available energy. Unlike traditional dryers that rely heavily on air circulation and high-temperature steam, paddle dryers use a wedge-shaped paddle system to ensure uniform heat distribution and efficient moisture removal. This design reduces the need for excessive energy input, leading to lower operating costs and a smaller carbon footprint. Additionally, the compact structure of paddle dryers allows for easy integration into existing production lines, reducing the need for additional infrastructure and further cutting down on energy use .
At JexDry, we specialize in designing and manufacturing high-efficiency paddle dryers that not only reduce energy consumption but also enhance productivity and product quality.
But how exactly do paddle dryers achieve such impressive energy savings? The answer lies in their innovative design and operational flexibility. By combining mechanical dehydration with thermal drying, paddle dryers can significantly reduce the amount of energy required to remove moisture from materials. This dual approach not only saves energy but also improves the quality and consistency of the final product. In the next section, we will dive deeper into the technical aspects of paddle dryer energy efficiency and how they can be optimized for even greater savings.
1: How Paddle Dryers Work and Their Energy Efficiency

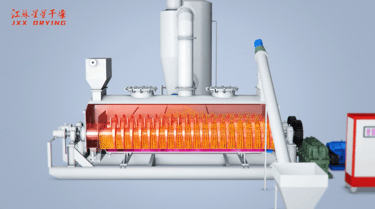

Paddle dryers operate by using rotating paddles to continuously agitate and mix the material, ensuring uniform heat transfer and efficient moisture removal. The wedge-shaped blades of the paddles help to compress and expand the material, increasing the surface area in contact with the heating surface. This design allows for maximum heat utilization and minimum energy loss, making paddle dryers one of the most energy-efficient drying technologies available. The key to their efficiency lies in indirect heating, where thermal energy is transferred from the heating medium (such as steam, hot water, or heat-conducting oil) through the wedge-shaped paddle blades and hollow stirring shafts. The indirect heating process ensures that no heat is carried away by air, which is a common issue in traditional dryers. Instead, the thermal energy is directly used to heat the material, minimizing energy loss and maximizing heat transfer efficiency .
2: Key Features That Make Paddle Dryers Energy Efficient
Several key features contribute to the energy efficiency of paddle dryers:
These features work together to create a highly efficient drying system that not only saves energy but also ensures consistent product quality and reliable operation.
3: How Do Paddle Dryers Achieve High Efficiency Across Different Industries?
Paddle dryers are a cornerstone of high-efficiency drying solutions across a wide range of industries, offering energy efficiency, versatility, and reliability. Whether you are in the food industry, chemical processing, environmental management, or pharmaceuticals, JexDry’s paddle dryers are engineered to meet the unique demands of your operations.
In the food industry, paddle dryers are used to dry sensitive products such as starch, flour, and animal feed. The indirect heating and gentle mixing ensure that the product retains its quality and nutritional value, while the wedge-shaped blades and self-cleaning design maintain optimal heat transfer and reduce maintenance needs . This makes paddle dryers an ideal choice for hygienic and energy-efficient drying in food processing.
In the chemical and pharmaceutical industries, paddle dryers are essential for drying APIs, powders, and granules. The closed system design and temperature control ensure that the product is not exposed to harmful contaminants, while the energy-efficient operation reduces operational costs and environmental impact . For toxic or flammable materials, the fully enclosed structure of the paddle dryer provides safe and secure processing.
In the environmental sector, paddle dryers are widely used for sludge drying, a critical process in wastewater treatment. The long retention time and continuous operation of the dryer allow for efficient moisture reduction, reducing the volume and weight of the sludge, and making it easier to transport and dispose of . The low energy consumption and eco-friendly operation of paddle dryers make them a preferred solution for industrial sludge management.
In the mining and minerals industry, paddle dryers are used to dry coal, ash, and metallic sludge. The robust construction and durable design of the dryer ensure that it can handle abrasive and corrosive materials without compromising performance . The energy-efficient operation and long service life of the dryer make it a cost-effective solution for high-volume drying applications.

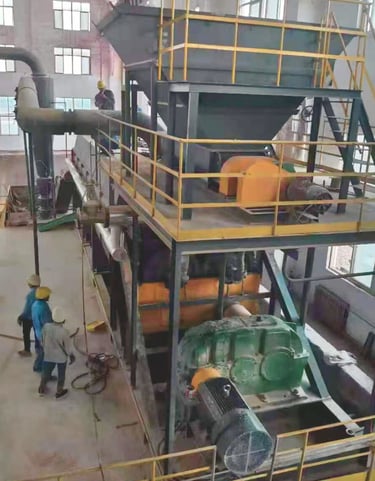

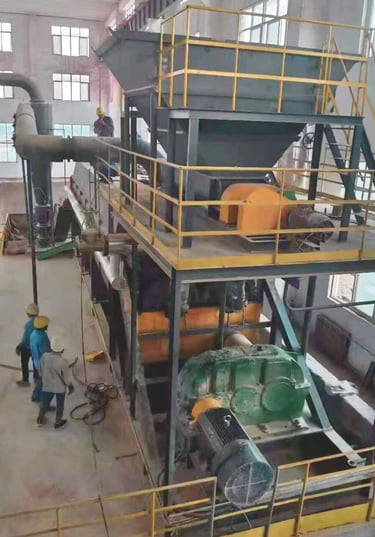

4: Case study: High-Efficiency Sludge Drying with JexDry Paddle Dryer in Europe
Project Overview
The facility is located in an industrial area in Europe, where it processes sludge from a wastewater treatment plant. The initial moisture content of the sludge is 80%, and the goal is to reduce it to 30% or lower for further processing. Prior to the project, the plant used traditional thermal wind drying, which was energy-intensive and had high environmental impacts.
Performance of JexDry Paddle Dryer
1. Drying Efficiency
Initial Moisture Content: 80%
Final Moisture Content: 15% (well below the target of 30%)
Moisture Reduction: 65%
Volume Reduction: ~70%
Processing Time: ~4 hours per batch (continuous operation)
Product Form: Loose granular powder, suitable for incineration or
fertilizer production
2. Energy Efficiency
Thermal Efficiency: 98% (significantly higher than traditional methods
at 70–80%)
Steam Consumption: ~1.2 tons per ton of dry sludge (vs. 2.5+ tons with traditional methods)
Electricity Consumption: ~150 kWh per ton of dry sludge (vs. 300+ kWh with traditional methods)
Heat Medium: Steam or thermal oil used as the indirect heating medium, minimizing heat loss
3. Environmental Benefits
Dust Emissions: Reduced by over 90% due to the fully enclosed design
Odor Control: Over 95% of odorous substances removed via the exhaust system
Regulatory Compliance: Meets EU directives on waste management and emissions
4. ROI and OPEX Analysis
Energy Savings: Reduced energy consumption by 20–30%, lowering operational costs.
Operational Cost (OPEX): Annual OPEX is reduced by 15–25% due to lower energy use and maintenance.
Product Value: Dried sludge can be used as fuel, fertilizer, or building material, increasing revenue.
Payback Period: The investment typically recovers in 3–5 years, depending on project scale and conditions.
5: Maintenance and Operational Tips for Energy Savings
To maintain the energy efficiency of your paddle dryer, regular maintenance and optimization are essential. Here are some tips to help you maximize energy savings:
Regular Cleaning and Inspection: Ensure that the paddle blades and heating surfaces are free from residual material and deposits, which can reduce heat transfer efficiency.
Optimize Air Flow and Pressure: Adjust the air flow and pressure to match the material characteristics and drying requirements, avoiding unnecessary energy use.
Use of Heat Recovery Systems: Install heat exchangers or heat pumps to reclaim heat from the exhaust air and reuse it in the drying process.
Monitor and Adjust: Use sensors and control systems to monitor and adjust the temperature, humidity, and material flow, ensuring optimal performance and energy use.
By following these maintenance and operational tips, you can ensure that your paddle dryer continues to operate at peak efficiency, delivering long-term energy savings and reduced operational costs.
Conclusion:Why Choose JexDry for Energy-Efficient Drying Solutions
As a leading paddle dryer manufacturer, JexDry is committed to delivering high-efficiency industrial drying solutions that meet the needs of modern industries. Our customized paddle dryers are designed to optimize energy use, reduce operational costs, and enhance product quality. Whether you are in the food, chemical, environmental, or mining industry, JexDry offers tailored solutions that ensure maximum efficiency and minimal downtime.
With years of experience and deep technical expertise, JexDry provides reliable and sustainable drying solutions that help businesses reduce energy consumption, meet environmental regulations, and improve overall productivity. Choose JexDry for energy-efficient drying solutions that are built to last, engineered for performance, and designed for your specific needs.
