Which Industries Are Best Suited for Paddle Dryers?

In today’s competitive industrial landscape, energy efficiency, product quality, and environmental compliance are no longer optional—they are essential. Among the many drying technologies available, paddle dryers stand out as a highly efficient and versatile solution for a wide range of industries, including：

• Chemical Industry

• Food Industry

• Environmental Protection Industry

• Pharmaceutical Industry

• Mining and Minerals Industry

• Agricultural and Feed Industry

At JexDry, we specialize in designing and manufacturing energy-efficient paddle dryers that help businesses reduce costs, improve productivity, and meet sustainability goals. In this article, we will explore the industries best suited for paddle dryers, supported by real-world examples and technical insights.

But how do paddle dryers achieve such impressive performance across different industries? The answer lies in their innovative design and operational flexibility. By combining mechanical dehydration with thermal drying, paddle dryers can significantly reduce the energy required to remove moisture from materials. This dual approach not only saves energy but also improves the quality and consistency of the final product. In the next section, we will dive deeper into the technical aspects of paddle dryer efficiency and how they can be optimized for even greater savings.

Table of Contents

1. Chemical Industry: How Do Paddle Dryers Ensure Precise Processing Control?

2. Food Industry: Do Paddle Dryers Meet Hygiene Standards?

3. Environmental Applications: How Do Paddle Dryers Transform Waste into Value?

4. Pharmaceuticals: How Do Paddle Dryers Protect Heat-Sensitive APIs?Mining &

5. Minerals: Can Abrasive Ores Be Dried Efficiently?

6. Agriculture & Feed: How Do Dryers Process High-Moisture Organic Waste?

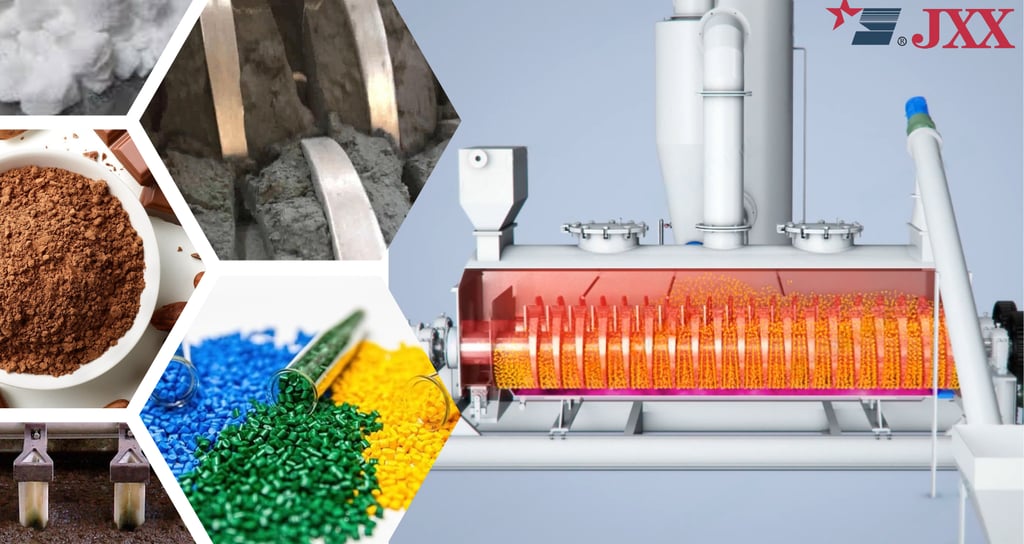

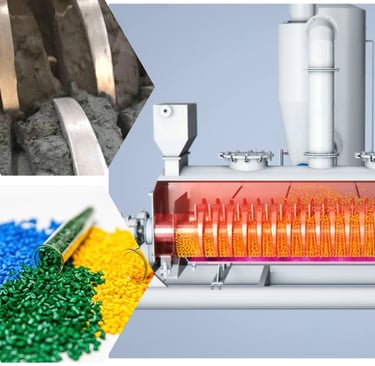

1. Chemical Industry: How Do Paddle Dryers Ensure Precise Processing Control?

The fully enclosed Jexdry paddle dryer delivers unmatched safety and efficiency for chemical processing applications. Our engineered gas-tight construction effectively contains solvents and volatile compounds, while maximizing recovery rates through maintained high solvent concentration in exhaust vapors. This ensures both operational safety and economic value recovery.

EASY-ACCESS MAINTENANCE COVER
Jexdry paddle dryers feature a unique gas-tight cover with integrated sight glass for visual process monitoring. The heat-treated cover surface prevents vapor condensation, maintaining consistent processing conditions and eliminating potential contamination points during operation.

MODULAR SYSTEM CONFIGURATIONS
Jexdry offers versatile design configurations to meet specific chemical processing requirements:

• Multiple independent heat zones for precise temperature control

• Vacuum operation capability for sensitive materials

• Specialized crystallizing designs for degradation-free PET processing

• Adjustable inclination angle for optimized product flow via gravity

• Customized metallurgy for corrosive applications

PRECISE RESIDENCE TIME MANAGEMENT
The Jexdry paddle system delivers exceptional radial mixing while maintaining controlled axial movement. This creates a near-perfect plug flow pattern that ensures uniform residence time for all product particles. Critically, the residence time can be precisely adjusted to match specific product requirements, enabling optimal quality control for each application.

CHEMICAL APPLICATIONS

• Polymers (PET, SAP, PA)

• Gypsum and calcium compounds

• Industrial minerals

• Metal powders and pigments

• Lithium and battery materials

• Specialty chemicals and intermediates

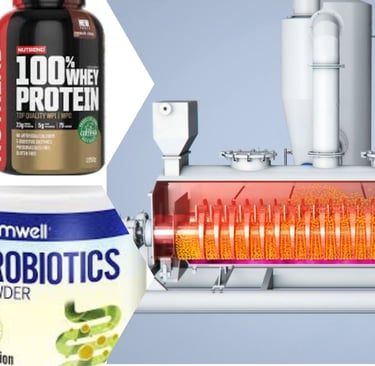

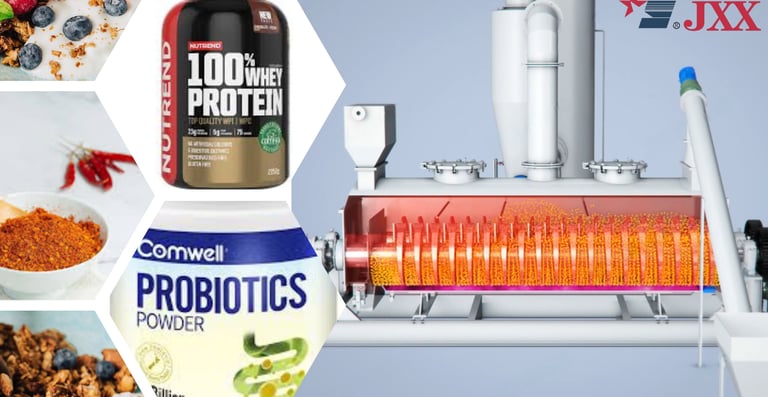

2.Food Industry: Do Paddle Dryers Meet Hygiene Standards?

For the food industry, the Jexdry vacuum paddle dryer stands out as the optimal solution, specifically engineered to comply with the most stringent hygiene and safety regulations. To eliminate any risk of cross-contamination, all product contact surfaces undergo specialized treatment—including precision polishing and advanced non-stick coatings. The entire machine structure emphasizes seamless cleanability and maintenance access, ensuring full adherence to food-grade standards.

DUST-TIGHT AND CONDENSATION-FREE COVER
The Jexdry paddle dryer is equipped with a fully sealed, dust-tight cover that supports both vacuum and overpressure operation. This is complemented by an adapted feeding and discharge system to maintain integrity under all process conditions. Crucially, the cover is heat-treated to prevent internal vapor condensation—safeguarding product quality and eliminating moisture-related contamination risks.

FLEXIBLE AND HYGIENIC CONFIGURATIONS
Designed in alignment with international hygienic design standards (such as EHEDG and FDA), the Jexdry paddle dryer offers a range of configurations tailored to food processing needs:

• Vacuum operation for gentle, low-temperature drying of heat-sensitive ingredients

• Dual independent heat zones for optimized thermal control across different stages

• Customized feed and discharge systems to match specific product characteristics

• Adjustable inclination angle for precise control over material residence time

All product-facing parts are polished to a surface roughness of Ra ≤ 0.8 µm or coated with food-grade materials, preventing material buildup and enabling fast, thorough cleaning.

FOOD APPLICATIONS

• Milk powder

• Starch and modified starches

• Cocoa powder

• Flour and bakery premixes

• Sugar and sugar substitutes

• Nut powders and pastes (e.g., hazelnut, almond)

• Powdered flavors, spices, and granules

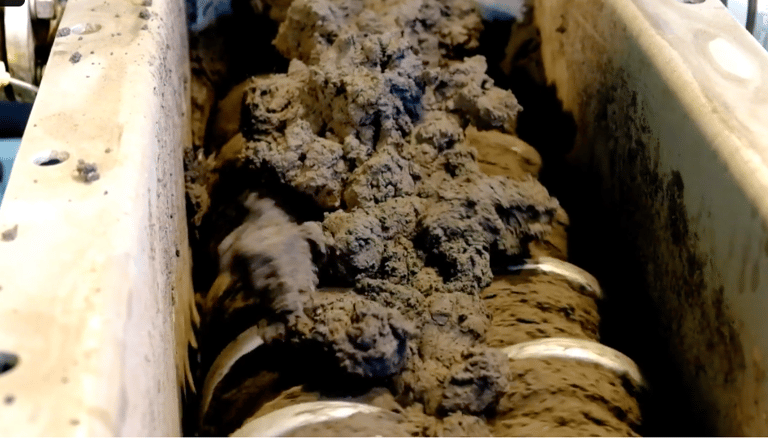

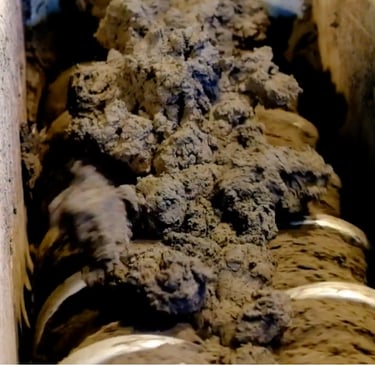

3.Environmental Applications: How Do Paddle Dryers Transform Waste into Value?

Engineered for the demanding conditions of environmental applications, Jexdry paddle dryers feature heavy-duty construction with exceptional wear resistance to handle abrasive materials. The extended retention time ensures thorough treatment under controlled hygienic conditions, consistently producing Class A biosolids. Operators can precisely control final moisture content through adjustable feed rates and energy input, enabling customized output specifications.

COMPLETE SLUDGE MANAGEMENT SOLUTIONS
Jexdry delivers integrated drying systems from initial dewatering to final product handling. Our comprehensive approach includes:

• Specialized wet sludge handling and conditioning systems

• Heavy-duty paddle dryers with enhanced wear protection

• Efficient dry material handling and storage solutions

• Advanced vapor treatment and odor control systems

• Tailored engineering for specific capacity requirements

Each system is custom-configured to address unique operational challenges and processing objectives.

SUSTAINABLE RESOURCE RECOVERY
Municipal and industrial wastewater facilities face escalating disposal costs and environmental pressures. Jexdry technology reduces sludge volume by 4-5 times, dramatically cutting transportation and disposal expenses while transforming waste into valuable resources.

The drying process significantly increases the material's calorific value, creating renewable energy opportunities. The resulting biosolids serve multiple beneficial uses:

• Agricultural fertilizer and soil amendment

• Alternative fuel source for industrial processes

• Nutrient recovery medium

• Sustainable construction material additive

ENVIRONMENTAL APPLICATIONS

• Municipal wastewater sludge

• Industrial processing residuals

• Paper and pulp mill waste

• Agricultural and food processing waste

• Biofuel production residues

• Digestate from anaerobic digestion

4.Pharmaceuticals: How Do Paddle Dryers Protect Heat-Sensitive APIs?

Engineered for the exacting requirements of pharmaceutical manufacturing, Jexdry paddle dryers provide the precise control and containment essential for processing high-value active pharmaceutical ingredients (APIs). Our systems maintain strict temperature profiles and operate within validated parameters to prevent degradation of thermally sensitive compounds while ensuring batch-to-batch consistency.

CLOSED-LOOP PROCESSING ENVIRONMENT
Jexdry pharmaceutical dryers feature fully enclosed, sanitizable designs that prevent external contamination and protect operator safety. Key features include:

• GMP-compliant construction with polished surfaces (Ra ≤ 0.4 µm)

• Integrated CIP/SIP systems for validated cleaning protocols

• Gas-tight seals for processing under inert atmosphere

• Isolated bearing arrangements preventing lubricant contamination

• Quick-disconnect components for rapid changeover between products

PRECISION PROCESS CONTROL
Jexdry systems deliver unmatched control over critical drying parameters:

• Low-temperature vacuum operation (as low as 20°C product temperature)

• Adjustable residence time with ±2% uniformity across batches

• Multi-zone temperature control for progressive drying profiles

• Real-time moisture monitoring with closed-loop feedback control

• Validated cleaning efficiency meeting FDA and EMA requirements

The gentle paddle agitation ensures uniform heat transfer without damaging crystalline structures or compromising potency.

PHARMACEUTICAL APPLICATIONS

• Antibiotics and heat-sensitive APIs

• Pharmaceutical intermediates

• Vitamin and nutrient formulations

• Biotech products and extracts

• Excipients and tablet formulations

• Controlled substance processing

5.Mining & Minerals: Can Abrasive Ores Be Dried Efficiently?

Engineered to withstand the most demanding mineral processing applications, Jexdry paddle dryers feature heavy-duty construction specifically designed for abrasive materials. Our wear-resistant technology ensures continuous operation even with high-abrasion ores and minerals, providing reliable performance while maintaining precise moisture control in the harshest environments.

EXTREME WEAR PROTECTION SYSTEM
Jexdry mineral dryers incorporate multiple layers of protection against abrasive wear:

• Tungsten carbide paddles with 8-10x longer service life than standard designs

• Ceramic-lined trough resistant to impact and abrasion

• Hard-faced shaft components with HVOF coating technology

• Replaceable wear plates at critical contact points

• Bulk material buffer zones to reduce direct impact on components

HIGH-CAPACITY MINERAL PROCESSING
Jexdry systems deliver unmatched efficiency for mineral drying applications:

• Handles bulk densities up to 2,200 kg/m³ without performance loss

• Processes particle sizes from fine powders to 25mm granules

• Maintains thermal efficiency despite abrasive material conditions

• Continuous operation with minimal maintenance requirements

• Adaptable drive systems for high-torque mineral processing

The robust paddle design ensures consistent mixing and heat transfer even with varying particle sizes and moisture content, preventing dead zones and ensuring uniform drying throughout the material bed.

MINING & MINERAL APPLICATIONS

• Iron ore and concentrate drying

• Copper, nickel, and zinc concentrates

• Industrial minerals (quartz, silica sand)

• Abrasive tailings and by-products

• Mineral sands and heavy minerals

• Coal and petroleum coke processing

6.Agriculture & Feed: How Do Dryers Process High-Moisture Organic Waste?

Engineered specifically for agricultural biomass and feed production challenges, Jexdry paddle dryers efficiently transform high-moisture organic materials into stable, value-added products. Our systems gently reduce moisture while preserving nutritional integrity, eliminating pathogens, and converting waste streams into usable resources through precise temperature control and optimized retention times.

ORGANIC MATERIAL PROCESSING SPECIALIZATION
Jexdry agricultural dryers incorporate specialized features for biological materials:

• Gentle low-temperature drying (40-80°C range) to preserve proteins and vitamins

• Pathogen elimination capability through precise temperature management

• Adaptable configurations for varying material consistencies from fibrous to granular

• Corrosion-resistant surfaces for acidic organic compounds

• Easy-clean design with quick access for maintenance and inspection

ENERGY-EFFICIENT OPERATION
Jexdry systems maximize efficiency in agricultural processing:

• Utilizes waste heat recovery from other processes

• Handles moisture levels from 30% to 85% without pre-processing

• Maintains nutrient retention above 95% for sensitive materials

• Reduces volume by 3-4 times, significantly cutting storage and transportation costs

• Continuous operation capability for large-volume processing requirements

The unique paddle configuration ensures gentle yet thorough mixing, preventing material degradation while achieving uniform drying results throughout the batch.

AGRICULTURAL & FEED APPLICATIONS

• Animal feed and feed ingredients

• DDGS (Distillers Dried Grains with Solubles)

• Fruit and vegetable processing waste

• Manure and agricultural residues

• Fisheries and aquaculture waste

• Biofertilizers and soil amendments

Conclusion: The Versatile Drying Solution for Demanding Industries

Paddle dryers have proven to be a highly adaptable and efficient technology across diverse industrial sectors, from pharmaceuticals and chemicals to mining and agriculture. Their core strengths—precision control over temperature and residence time, robust construction tailored to material challenges (e.g., abrasion resistance for minerals, hygienic design for food and pharma), and ability to transform waste into valuable resources (e.g., biosolids from sludge, nutrient-rich feed from organic waste)—make them indispensable for modern industrial processing. By ensuring uniform product quality, enhancing safety through enclosed systems, and supporting sustainability goals via energy efficiency and waste valorization, paddle dryers like Jexdry’s solutions address both operational and environmental challenges. As industries increasingly prioritize efficiency and sustainability, the role of advanced drying technology will continue to expand, driven by innovations in modular design, automation, and material-specific engineering11015.Engineered specifically for agricultural biomass and feed production challenges, Jexdry paddle dryers efficiently transform high-moisture organic materials into stable, value-added products. Our systems gently reduce moisture while preserving nutritional integrity, eliminating pathogens, and converting waste streams into usable resources through precise temperature control and optimized retention times.
