A paddle dryer is an indirect contact dryer that uses rotating hollow paddles and a heated jacket to remove moisture from wet materials. Heat passes through metal surfaces into the product, while the paddles mix the material for more uniform drying. Common applications include sludge, chemicals, minerals, powders, and pastes.
For manufacturers, the main advantages are controlled heat transfer, compact equipment, and reduced dependence on large volumes of hot drying air. Used as a sludge dryer, a paddle dryer removes water from dewatered sludge to reduce its weight and volume. The appropriate configuration depends on the feed material, target moisture content, and available heat source.
Table of Contents
- What Is a Paddle Dryer?
- How Does a Paddle Dryer Work? (Step-by-Step)
- Paddle vs. Rotary Dryer: 5 Performance Metrics That Matter
- Heating Medium Guide: Fueling Your Drying Process
- What Materials Can Paddle Dryers Process?
- What Should You Consider When Choosing a Paddle Dryer for Your Specific Material?

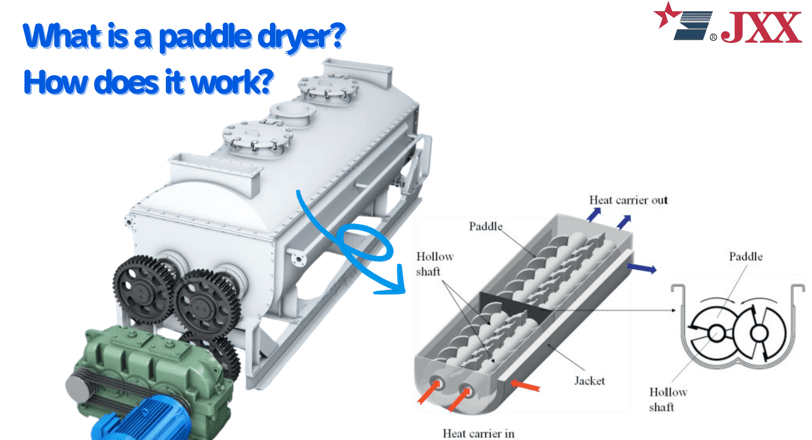

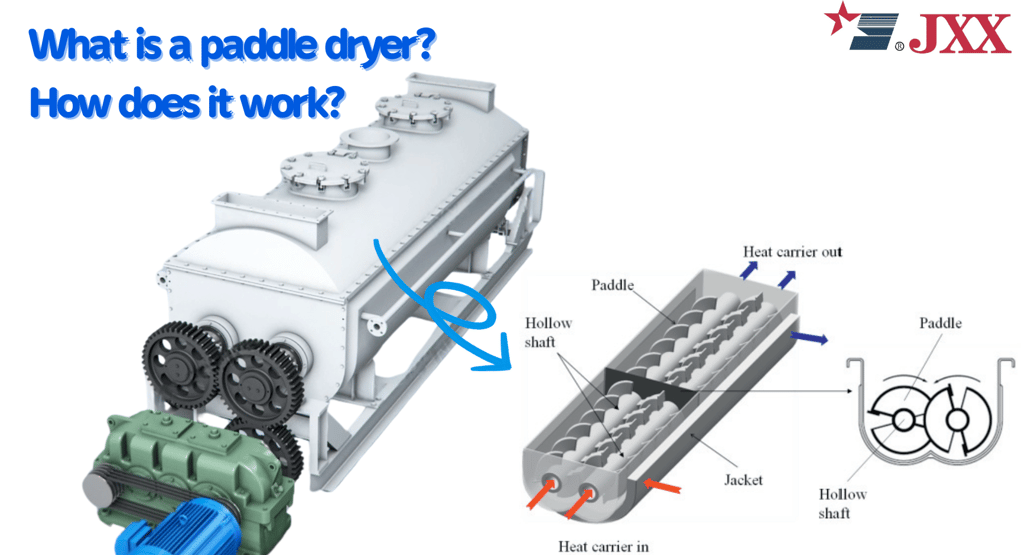

1. What Is a Paddle Dryer?
A typical horizontal paddle dryer has a jacketed trough, hollow shafts, and, in many designs, wedge-shaped paddles. Heat transfers through the paddles and jacketed walls, enabling indirect drying. With suitable temperature and residence-time control, this design suits materials such as sludge, powders, and pastes.
The process begins when wet material enters the dryer through an inlet. Heated paddles continuously mix the product, improving contact with the heat-transfer surfaces. Moisture evaporates and leaves through the vapor outlet, while dried material moves toward the discharge. The final product may be a powder, granules, or dried solids, depending on the feed.

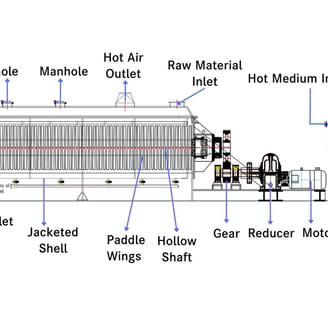

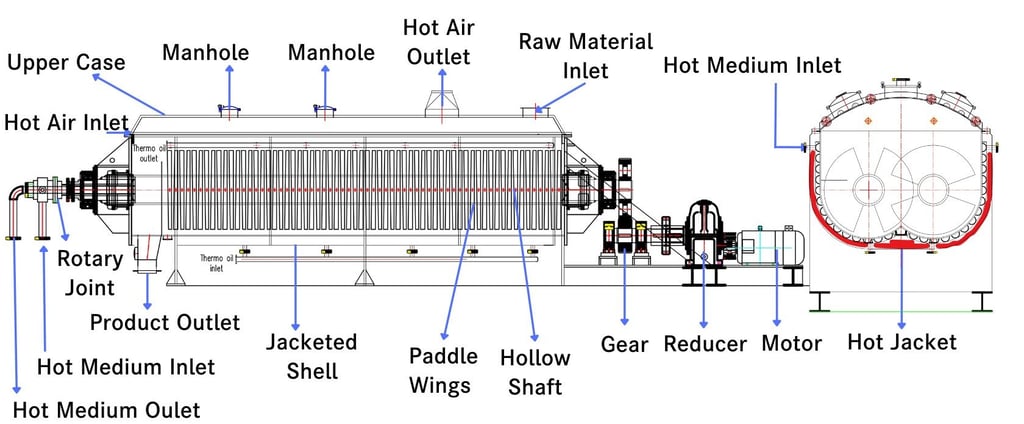

The key components of a paddle dryer system include the thermal exchange system, agitation system, sealed housing, and downstream emission-control equipment.
1. Thermal Exchange System
- Hollow paddles: Steam or thermal oil circulates through the hollow heated components, transferring heat through the metal into the material.
- Jacketed shell: The double-walled shell provides additional heating surface around the product.
- Function: Supplies heat by conduction without direct contact between the heating medium and the product.
2. Agitation System
- Rotating shafts: Drive the paddles to mix the material and renew contact with heated surfaces.
- Self-cleaning design: Paddle geometry and material movement help reduce buildup when processing sticky materials.
- Result: More consistent heat exposure and moisture distribution. Shaft speed and required torque depend on the material and dryer design.
3. Sealed Structure
- Enclosed housing: Helps contain dust and vapor. Vacuum or inert-gas operation requires a suitably designed housing, seals, and controls.
- Discharge valves: Suitable airlocks or other discharge devices control product removal while maintaining the required operating conditions.
- Application requirements: Materials of construction, pressure ratings, and hygienic features must match the chemical, food, or pharmaceutical process.
4. Emission Control
- Dust separation: Cyclones or filters remove entrained particles, with equipment selected for the particle size and required collection performance.
- Condensers: Condense water or solvent vapor for collection. Additional odor or off-gas treatment may be required.
These components work together to control heat transfer, material movement, and vapor handling. Overall efficiency and product quality depend on the complete system and operating conditions.

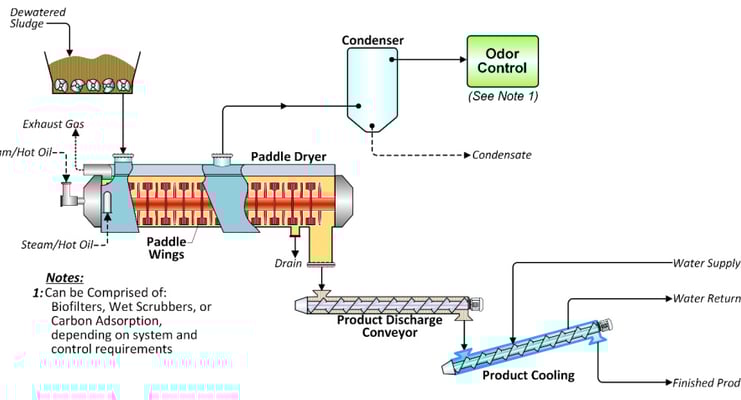

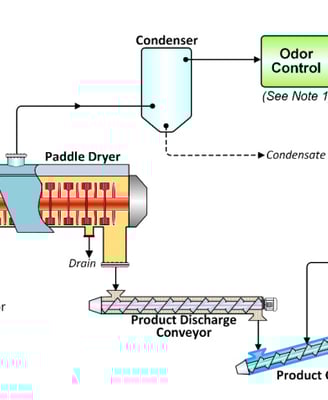

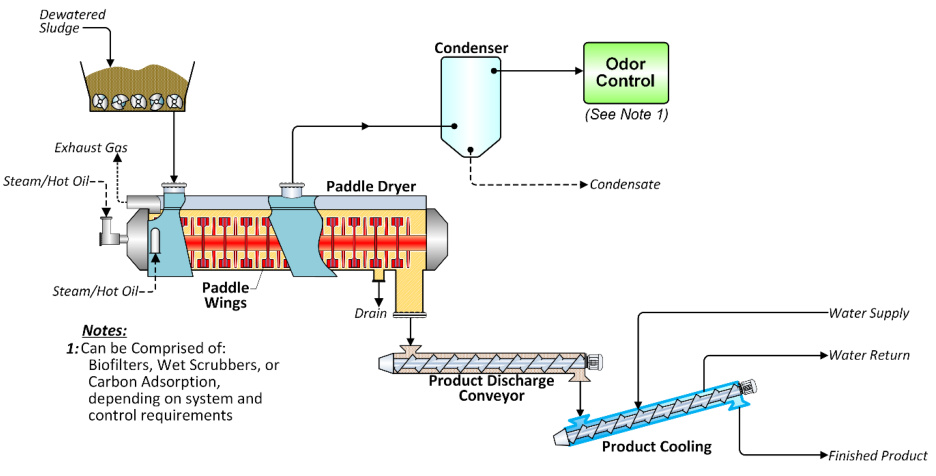

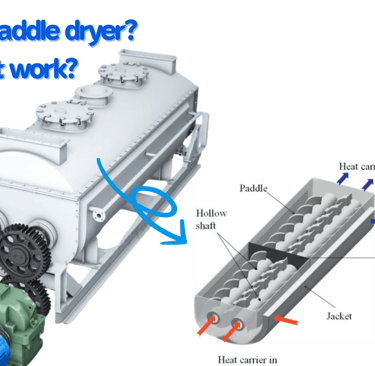

2. How Does It Work?
Paddle dryers utilize indirect conduction heating to process challenging materials such as sludges, pastes, and heat-sensitive compounds. Rotating paddles expose wet material to heated surfaces, while the vapor system removes evaporated moisture. The process involves the following six stages.
Phase 1: Precision Material Feeding
Reducing clogging and inconsistent feed. Wet materials enter through an inlet and a suitable feeding device, such as a screw conveyor for dewatered sludge or filter cake. Feed rate is adjusted to the incoming moisture content, material consistency, and dryer capacity. Stable feeding helps maintain a consistent residence time.
Phase 2: Dual-Path Indirect Heating
Transferring heat through the jacket and paddles. The jacketed trough and hollow paddles provide two paths for heat transfer. Steam, thermal oil, or hot water supplies heat at conditions selected for the application. The product remains separate from the heating medium and combustion gases during normal operation.

Phase 3: Self-Cleaning Agitation
Reducing buildup and improving uniformity. In a typical twin-shaft design, counter-rotating shafts drive wedge-shaped paddles. Material movement creates shear at the heated surfaces and helps limit deposits. Mixing renews surface contact as the product progresses through the dryer; it does not eliminate the need for inspection and cleaning.
Phase 4: Phase-Driven Moisture Removal
Managing changes in material consistency. Some sludges and pastes pass through sticky or plastic stages before becoming granular as moisture is removed.
- Plastic phase: The material may become cohesive or sticky, increasing the load on the drive.
- Shearing phase: Paddle movement mixes the material and helps break up agglomerates.
- Granular phase: As drying continues, some materials become more free-flowing.
These stages depend on the material. Where lower drying temperatures are needed, a vacuum-rated paddle dryer can reduce the boiling temperature of the liquid being removed.

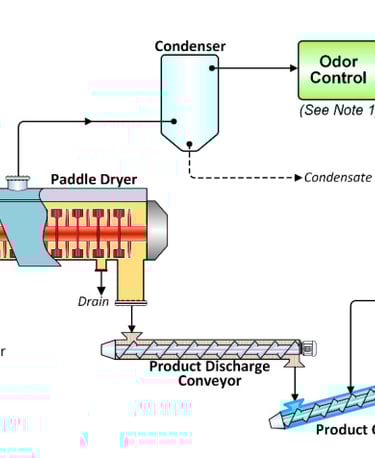

Phase 5: Sealed Discharge & Emission Control
Controlling product discharge and exhaust. Discharge devices remove the dried product while maintaining the required containment. Dust separators collect entrained solids, and condensers recover condensable vapor. Solvent recovery, odor treatment, and any inert-gas system must be sized for the actual process. For sludge reuse, the finished material must meet the applicable treatment and testing requirements.
Phase 6: Industry-Specific Optimization
Matching the system to the application.
- Pharmaceuticals: Select compatible contact materials, suitable surface finishes, and validated cleaning procedures.
- Food: Match hygienic design, temperature control, and any inert atmosphere to the product’s quality requirements.
- Hazardous materials: Specify containment, monitoring, and explosion-protection measures for the material and installation.
3. Paddle vs. Rotary Dryer: Performance Showdown
The comparison below refers to a typical indirect paddle dryer and a direct hot-gas rotary dryer. Indirect rotary dryers also exist. Compare quotations at the same feed rate, inlet and outlet moisture, and utility conditions.
| Parameter | Paddle Dryer | Rotary Dryer | Practical Advantage to Check |
| Thermal efficiency | Heat enters through metal surfaces; little carrier gas may be needed. | Hot gas supplies heat and carries away moisture. | Compare total energy per unit of water evaporated. |
| Footprint | Large heat-transfer area in a compact trough. | Includes a rotating drum and associated gas-handling equipment. | Compare the complete plant layout and service clearances. |
| Maintenance | Inspect shaft seals, bearings, paddles, and heating circuits. | Inspect drum supports, drive, seals, and internals. | Compare maintenance needs for the actual material and duty. |
| Viscosity and stickiness | Agitation can help handle sludges, pastes, and sticky cakes. | Suitability depends on feed behavior and drum design. | Test the material through its sticky drying stage. |
| Temperature control | Heating-medium temperature and residence time can be controlled. | Product temperature depends on gas conditions and material contact. | Confirm the product temperature and moisture achieved in trials. |

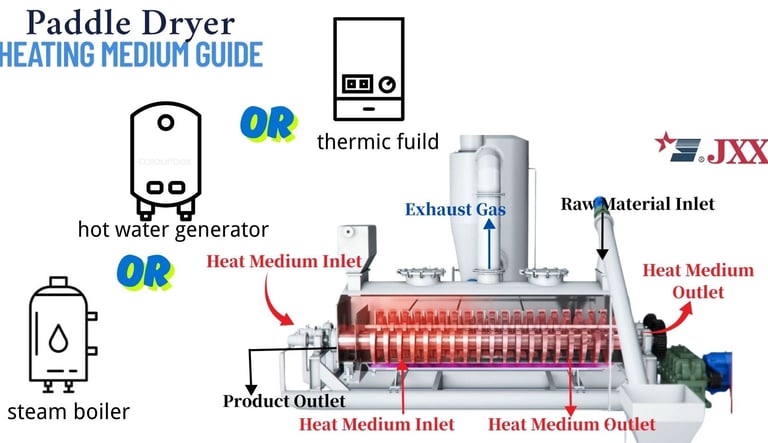

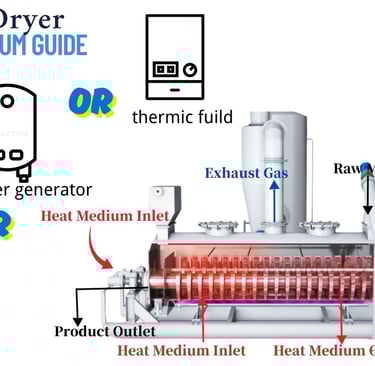

4. Heating Medium Guide: Fueling Your Drying Process
Types of Heating Medium
Paddle dryers use several types of heating media. The most common options include steam, thermal oil, and hot water. Each type has different operating conditions that affect drying performance. Heating-medium temperature and actual product temperature are not the same.

Steam
Steam is a common heating medium in paddle dryers. Many factories select steam because it provides steady and even heat. Steam moves through the jacket and hollow shafts, and heat passes through the metal surfaces to the wet material. This dries the product without flames or a large flow of hot air in direct contact with it.
With saturated steam, changing the steam pressure changes its temperature. This helps engineers set suitable heating conditions. Effective condensate drainage is also important for maintaining heat transfer across the heated surfaces.
Steam systems need a suitable steam supply, properly rated piping, and maintained condensate-return equipment.
Advantages of using steam:
- Steady heating temperature at controlled pressure.
- Effective heat transfer as steam condenses.
- Convenient where a suitable plant steam supply already exists.
- Adjustable heating conditions within the system’s design limits.
Disadvantages:
- Requires a boiler or another suitable steam supply.
- Needs pressure-system maintenance, steam traps, and condensate management.
Thermic Fluid
Thermic fluid, also called thermal oil, is another common heating medium. Factories may select thermal oil when the required heating temperature is impractical for the available steam system. The oil moves through the dryer’s jacket and shafts, supplying heat to the material inside.
Thermal oil can provide elevated temperatures at lower operating pressures than saturated steam at an equivalent temperature. Its allowable operating temperature depends on the fluid grade and the ratings of the heater, piping, seals, and dryer.
Operators must monitor fluid condition, flow, and temperature. Over time, the oil can degrade and reduce system performance. Checking and maintaining the fluid helps keep the system running reliably.
Hot Air
In a conventional indirect paddle dryer, steam, thermal oil, or hot water provides the main heating duty. Hot air may instead be used as a sweep gas in some configurations to help carry vapor away. It should not be confused with the heating medium circulating through the jacket and hollow paddles.
Whether air is appropriate depends on oxidation, dust, and solvent hazards. An inert gas may be required for some materials. Sweep-gas flow also affects the size and energy demand of downstream exhaust treatment.
Potential benefits of a suitable sweep-gas system:
- Helps move evaporated moisture toward the vapor outlet.
- Can help control vapor conditions and reduce condensation in suitably heated exhaust equipment.
Limitations:
- Adds gas volume that may require treatment.
- Air is unsuitable for some oxygen-sensitive or flammable processes.
- Does not replace the main indirect heating circuit.
| Heating Medium | Temperature Selection | Key Benefit | Common Use Case |
| Steam | Selected from steam pressure and equipment ratings. | Steady heating with effective heat transfer. | General drying where steam is available. |
| Thermal oil | Limited by the fluid and heating-system ratings. | Elevated-temperature heating without equivalent steam pressure. | Processes requiring higher heating temperatures. |
| Hot water | Selected for the required temperature difference and evaporation duty. | Lower-temperature heat supply. | Suitable low-temperature duties, including some vacuum applications. |
Indirect thermal drying transfers heat from these media through metal surfaces. The product does not contact the heating medium during normal operation. Hollow paddles and shafts increase the available heat-transfer area, while insulation and suitable heat recovery can reduce energy losses.
5. What Materials Can Paddle Dryers Process? Industry-Specific Solutions for Critical Drying Challenges
Paddle dryers handle a range of industrial materials, including high-viscosity sludges, heat-sensitive compounds, and sticky byproducts. Suitability depends on how the material behaves during drying, its temperature limits, and the required final product.

1. Environmental Protection Industry
Paddle dryers are used in the environmental industry to dry various sludge types. Removing water reduces the weight and volume requiring transport or disposal. A paddle sludge dryer normally receives mechanically dewatered sludge, making the upstream dewatering stage important to the thermal energy requirement.
Materials that may be suitable, subject to their composition and processing requirements, include:
- Municipal sludge.
- Industrial sludge.
- Paper sludge.
- Biogas residues.
- Drilling mud.
- Biomass.
- Digested manure.
- Pharmaceutical waste.
- Sugar industry waste.
- Wet coal ash.
Key advantages include:
- Agitation through the sticky or plastic phase; the need for back-mixing depends on the feed and design.
- Controlled residence time and heating for consistent treatment.
- Indirect heating with relatively low carrier-gas demand.
- Flexibility for different sludge types after suitability testing.
- Low-speed operation and a compact plant layout.
- Potential for heat recovery from the vapor system.
Safety features to specify for the process:
- Closed equipment with suitable vapor and odor control.
- Inert-gas operation where required; a closed dryer is not automatically oxygen-free.
- Oxygen, carbon monoxide, and temperature monitoring where indicated by the process assessment.
- Suitable fire detection and suppression arrangements.
- Explosion prevention or protection selected for the actual material and installation.
Drying alone does not establish that sludge is suitable for reuse. Where U.S. Class A biosolids status is required, the treatment process and testing must satisfy the applicable requirements. Explore JexDry’s sludge dryer systems for application-specific information.
2. Chemical Industry
Paddle dryers are used in the chemical industry for drying a range of chemical products. Enclosed operation helps contain dust and vapor. Depending on the material, a suitable sweep gas and heated vapor lines can help manage vapor conditions and reduce unwanted condensation. Specially designed systems can also handle the crystallization and drying of polyethylene terephthalate (PET).
Special attention is paid to shaft seals and other potential leakage points when processing solvents. A concentrated vapor stream can support solvent recovery through condensation. Gas recycling and pressure control require an appropriate process design.
Key applications in the chemical industry include:
- Polymers, such as PET, SAP, and PA, with a suitable process configuration.
- Gypsum.
- Minerals.
- Metal powders with appropriate material-handling and safety provisions.
Advantages of paddle dryers in the chemical industry:
- Controlled material flow and residence time.
- Continuous operation in suitable configurations.
- A large heat-transfer surface in a compact volume.
- Sealed operation to limit solvent losses.
- Options for solvent recovery and gas recycling.
- Adaptability to different chemical products.
The material’s corrosion behavior, heat sensitivity, and solvent content determine the required design.
3. Food Industry
Paddle dryers can be used for drying and thermal treatment of suitable food ingredients. Hygienic construction and controlled operating conditions help maintain product quality. Potential applications include:
- Milk powder and suitable dairy ingredients.
- Starch.
- Cocoa and flour.
- Sugar.
- Other compatible powders and granules.
Key advantages of paddle dryers in the food industry:
- Controlled product movement for more consistent thermal treatment.
- Limited sweep-gas requirements in suitable designs.
- Vacuum compatibility in specifically designed equipment for lower-temperature processing.
- Hygienic construction and access for cleaning; CIP capability requires a suitable design and validated cleaning process.
- Wedge-shaped paddles that promote mixing and heat transfer.
- Enclosed processing to reduce external exposure.
- A compact structure with operating conditions matched to the product.
Food applications should be evaluated for cleanability, allergen control, and the effect of heat and shear on the ingredient.
6. What Should You Consider When Choosing a Paddle Dryer for Your Specific Material?
When selecting a paddle dryer for specific materials, it is essential to evaluate the operational, material, and environmental requirements. The following considerations help define an appropriate equipment specification.
Material Properties
Understanding the physical and chemical properties of the material to be dried is critical.
- Moisture content: Determine both the initial moisture content and the desired final moisture level, stating whether the values are on a wet or dry basis. Materials with high moisture content may require longer drying times or higher heat input.
- Particle size and density: The size, shape, and density of particles influence how they interact with the paddles and heat-transfer surfaces.
- Heat sensitivity: Some materials degrade, melt, or react chemically at elevated temperatures. Low-temperature drying or a vacuum paddle dryer may be necessary.
- Viscosity and stickiness: Sticky materials can adhere to surfaces. Evaluate their behavior throughout drying, including any high-torque stage.
- Corrosiveness and toxicity: Select compatible contact materials and appropriate containment. Stainless steel is not suitable for every corrosive material.
Drying Requirements
The specific drying process requirements must align with the capabilities of the paddle dryer.
- Drying curve characteristics: Analyze how the drying rate changes as moisture is removed. This affects residence time and temperature settings.
- Final product quality: Confirm the required moisture uniformity, particle condition, and acceptable thermal exposure.
- Batch vs. continuous operation: Decide which configuration suits the production schedule and product changeovers.
Heat Source Availability
The type of heating medium available affects operational efficiency and cost.
- Heating medium options: Compare steam, hot water, and thermal oil based on plant availability and process requirements.
- Temperature range: Check both heating-medium conditions and the allowable product temperature against the dryer’s design ratings.
Capacity Requirements
The amount of material to be processed determines the size and configuration of the paddle dryer.
- Throughput: Specify feed rate, operating hours, and inlet and outlet moisture. Size the system for the required evaporation duty, not feed tonnage alone.
- Number of shafts: Shaft configuration, heating area, and available drive torque must match the material and required capacity.
Energy Efficiency
Energy consumption plays a significant role in operating costs over time.
- Indirect heating efficiency: Assess heating demand, insulation, drive power, and auxiliary equipment on a consistent operating basis.
- Waste heat recovery: Consider whether heat recovered from vapor or condensate can be reused elsewhere in the plant.
Material Handling Characteristics
How materials behave during processing affects equipment design and performance.
- Flow behavior: High viscosity or stickiness may require a specific paddle arrangement and feeding system.
- Material flow rate: Feed rate affects the material inventory, residence time, and required heat input.
- Material adhesion: Trials can identify deposits or difficult transitions that need additional measures.
Environmental and Safety Considerations
- Emissions and waste: Define the required control of dust, odors, solvent vapor, condensate, noise, and waste.
- Safety standards: Match equipment materials, instrumentation, and containment to the process and applicable installation requirements.
- Explosion protection: For combustible dusts or flammable vapors, use a process-specific assessment to determine inerting, ignition control, and any required protection measures.
Installation and Maintenance
- Space requirements: Allow space for the dryer, feeding and exhaust equipment, utilities, and maintenance access.
- Maintenance accessibility: Choose a design that facilitates cleaning, inspection, and part replacement.
Cost and ROI
- Initial investment: Include the dryer, auxiliary equipment, installation, and any production-line modifications.
- Operating costs: Evaluate energy, maintenance, labor, and waste-treatment costs.
- Return on investment: Base the calculation on realistic throughput, utility costs, product value, and any reduction in transport or disposal costs.
Supplier and Support
- Vendor experience: Look for relevant material trials and comparable applications.
- Technical support: Confirm installation assistance, operator training, and troubleshooting arrangements.
- Warranty and service: Review the warranty, spare-parts availability, and agreed service scope.
By evaluating these factors, you can select a paddle dryer suited to the material and operating requirements. When discussing a JexDry paddle dryer system, provide a representative material sample, feed rate, initial and target moisture, temperature limits, and available utilities so the proposed configuration can be assessed against the actual duty.
Conclusion: Engineering Resilience Into Every Gram
Paddle dryers combine indirect heating and mechanical agitation to process wet solids, pastes, and sludges. Their value depends on matching heat transfer, residence time, and material handling to the application.
For a JexDry paddle dryer project, focus on:
- Material suitability: Confirm behavior across the full drying cycle.
- Process design: Match the heat source, capacity, and vapor treatment to the required result.
- Long-term operation: Plan cleaning, maintenance, and spare-parts support before installation.
Ready to discuss your drying process? Discuss your material and paddle dryer requirements with JexDry, or contact us on WhatsApp: +86 137 7501 3369.
Frequently Asked Questions About Paddle Dryers
What is the difference between a paddle dryer and a sludge dryer?
A paddle dryer describes the drying technology, while a sludge dryer describes the application. Paddle dryers use indirect heating and mechanical agitation and can serve as sludge dryers. Sludge can also be dried with other types of equipment, so not every sludge dryer is a paddle dryer.
Can a paddle dryer handle sticky sludge and filter cake?
Yes, a suitably designed paddle dryer can process sticky sludge and filter cake. Paddle movement mixes the material and helps reduce buildup on heated surfaces. Suitability depends on how the feed behaves throughout drying, including its stickiest stage. Material trials help confirm the required drive torque, feeding arrangement, and cleaning needs.
What heating media can a paddle dryer use?
Common heating media include steam, thermal oil, and hot water. The choice depends on available utilities, the required evaporation rate, and the material’s temperature limit. The heating medium circulates through the jacket and heated internal components, remaining separate from the product. Hot air, when used as a sweep gas, has a different role.
Can a paddle dryer dry heat-sensitive materials?
Yes, provided the product temperature, residence time, and mixing conditions are suitable for the material. A vacuum-rated paddle dryer can lower the boiling temperature of the liquid being removed, enabling lower-temperature drying. Trials should confirm that the chosen conditions achieve the required moisture content without unacceptable changes to product quality.
What determines the final moisture content in a paddle dryer?
Final moisture content depends on the material’s drying behavior, initial moisture, feed rate, heat input, residence time, and vapor-removal conditions. There is no single outlet-moisture value that applies to every feed. Specify the target on a wet or dry basis and verify it through representative trials at the required throughput.
What information is needed to select a paddle dryer?
Provide the material composition, feed rate, initial and target moisture content, temperature limits, available utilities, and required operating schedule. Include information about stickiness, abrasiveness, corrosiveness, and any solvents or combustible dust. Share these details with JexDry to discuss the required evaporation duty, equipment configuration, and whether material testing is needed.
